| Type: | Wire |
| Order No.: | 43559 |
You can order the intelligent and popular CR 04 regulator together with the outdoor temperature sensor in a discounted equithermic set. The equithermic regulation allows the boiler to change the heating water temperature according to changes in outdoor temperature, thus achieving higher fuel efficiency. In addition to reducing operating costs, it also improves thermal comfort as the heating elements are heated continuously.
The option of equithermic regulation is available with all THERM boilers (except for THERM ELN series) and it is activated on request by an authorised service technician. This method of regulation may only be used with a connected outdoor temperature sensor. The outdoor temperature sensor is solely mounted on the north wall of the building, about 3 metres above the ground, and it must not be influenced by any external heat source (open windows, sunshine, etc.).
Recommended retail price: on request
Highlights

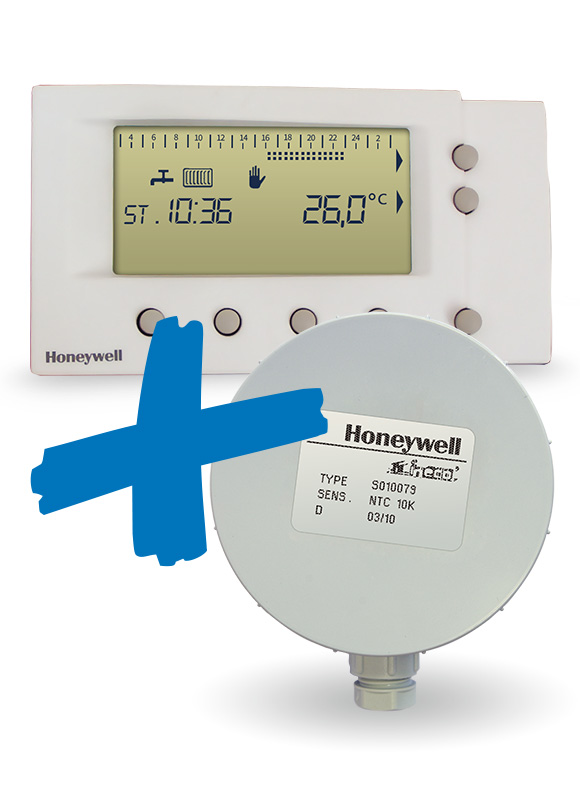

The package of the CR 04 equithermic set contains:
- Intelligent CR 04 regulator
- External outdoor temperature sensor

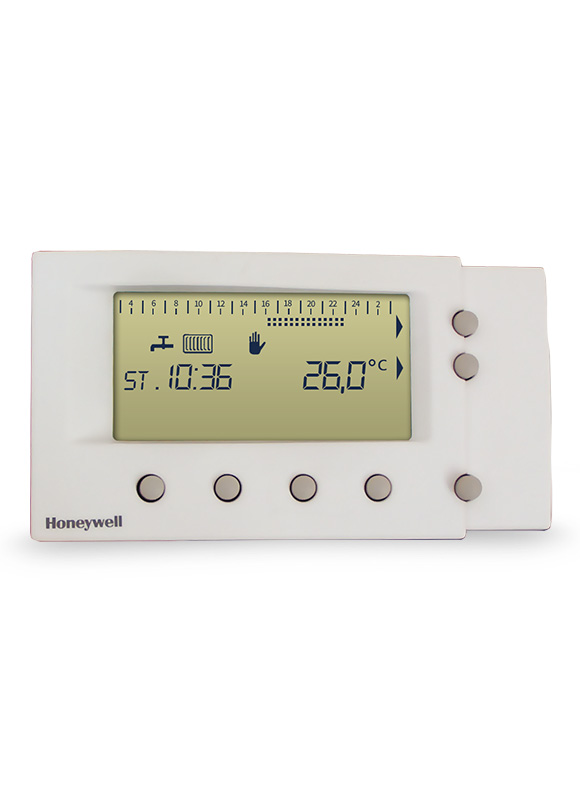

CR 04 Regulator
- Displays the operating statuses of the boiler unit
- 3 adjustable heating levels
- 5 basic heating programs set in production
- Error diagnostics
- Option to set 7-day heating program
- Option to set 7-day program for heating water
- Function for immediate change of temperature
- Two-conductor connection and supply from the boiler
- Option to control the Thermona cascade boiler room

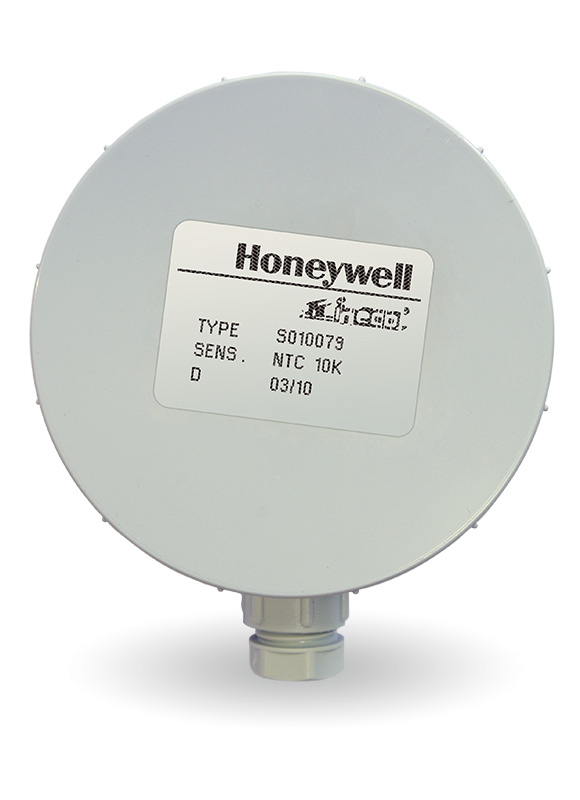

Outdoor temperature sensor
- Sensor stored in a plastic case
- Small dimensions
- Easy installation
- Designed for use in the exterior
