| Connection: | 3/4″, 1″ |
| Order No.: | 43566, 43567 |

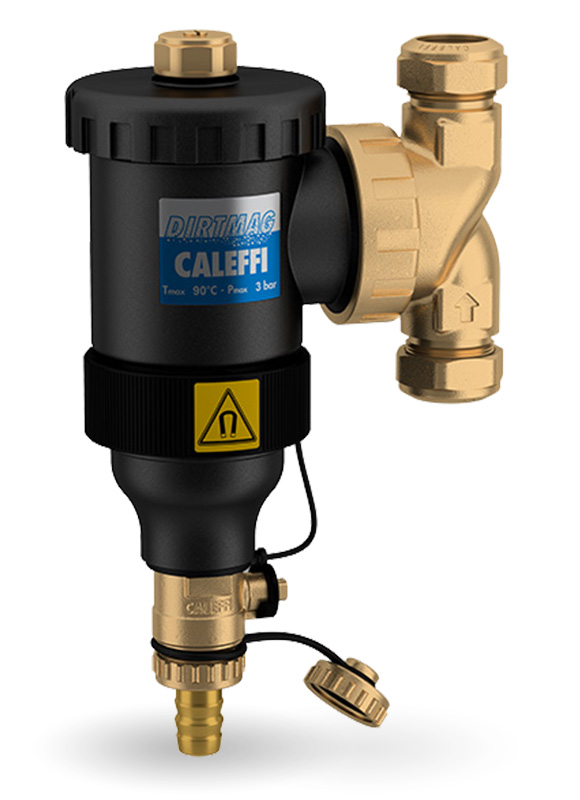

The impurity separator separates impurities mostly formed by sand and corrosion particles that circulate in close-circuit systems, with very low pressure losses. Impurities are collected in a large sludge removing chamber with a low cleaning frequency, which can also be cleaned during operation. The device is available in two sizes, with a 3/4″ and 1” connector.
The impurity separator is also equipped with a removable magnetic ring to separate ferrous impurities. The separator is made of resistant composite material; it is exceptionally versatile since it can be installed both onto a horizontal and vertical pipeline.
Recommended retail price – 3/4″: on request
Recommended retail price – 1″: on request
Highlights
- Sediment separator with a magnetic ring
- Body from resistant composite material
- Inner connecting threads
- Adjustable connection to both horizontal and vertical pipeline
- Equipped with a discharge valve with a pipe-to-hose adapter
