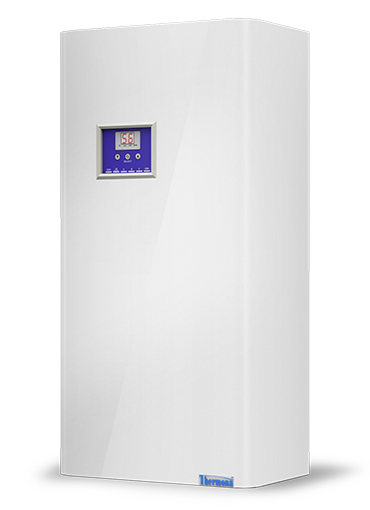

The THERM ELN 8 electric boiler can be used as universal heat source for heating flats, family houses and cottages. The boilers can also be used to heat water in an external storage tank. In this case, the boiler must be fitted with accessories – a three-way valve. The indisputable advantage of a heating system with an electric boiler is the very low acquisition costs – there is not need for an expensive gas or chimney connection.

The boiler must be installed and connected by a professional company. The electric boiler also operates with a rate switch, which runs the boiler in at a reduced rate. The THERM ELN 8 electric boiler offers quite operation and simple servicing. The boiler is supplied in white.

View the ErP label



retail price: on request

eu_flagThe product THERM EL 45 complies all legislative, safety, healthy and environmental requirements of the European Union and CE mark enables the free movement of products within the market of the European Economic Area

Category:

Highlights

  • Quiet operation due to selected switching relays
  • Fluent regulation in low steps by 2,5 kW
  • Minimum output of the boiler 2,5 kW
  • User-friendly two-digit LED display
  • Safety switch contractor
  • Option to control output temperature with 0 – 10 V signal
  • There is also the option to heat water in an external reservoir and to fit with a three-way valve
  • HDO communication – remote switching of the operation to a low rate by the electricity supplier

Download

Product overview Thermona
Cascade boiler rooms – Catalogue of components
Product catalogue Thermona – DE
Cascade boiler rooms – Catalogue of components – DE
The declaration of conformity of the product THERM ELN 8 – CZ
Manual for installation, service and maintenance of boiler THERM ELN 8 – EN
Manual for installation, service and maintenance of boiler THERM ELN 8 – RU
Manual for installation, service and maintenance of boiler THERM ELN 8 – CZ

Class of seasonal energy efficiency of heating

D
Nominal heat output

7.5
Minimum regulation level of the output

2 500
Rated current (single-phase connection)

11 (33)
Level of electric coverage

IP 40
Supply voltage / frequency

3 x 400/230 + N + PE/50 ~
Maximum rated current

3 x 12 (1 x 36)
Main circuit breaker for electric installation

16 (40)
Rated current of the control circuit breaker

1.25
Electric service life of relay

1.105 cycles (16 A, 250 V/50 Hz)
Mechanical service life of relay

10.106 cycles
Input - output of heating water

G 3/4" outer
Min. – max. working overpressure of heating system

0.8 – 3.0
Maximum temperature of heating water

80
Water volume of the boiler

6.8
Efficiency at the rated power

99.5
Volume of expansion tank

7
Dimensions: height / width / depth

820 / 400 / 235
Weight of the boiler without water

31
Order number

1611
